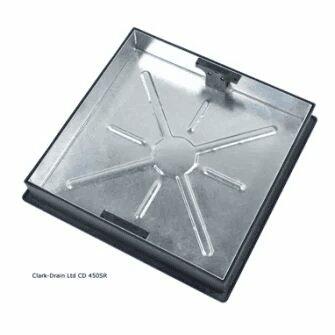

Clark Drain CLKS450Sr 450mm x 450mm x 80mm Tray And Cover

• Specific Product Codes:  CLKS 450SR
• Product Group:   Steel Manhole Covers
• Sub-Category:   Recessed
• Material Grade/s: Mild Steel to BS EN 1449:1991/EN 10025:2004 Galvanising to BS EN 1461:2009  Polypropylene Grade AP9 (Frame only)
• Basic Dimensions (mm): Clear-opening = 450 dia Overall size = 580 x 580 Tray depth =  80 Overall depth* = 88      (*not including location rings)
• Weight (kgs):    12.0
• Load Rating Classification:  10 tonne GPW
• Applicable Standard(s):  FACTA (clauses no. 7.0, 7.2, 7.2.1, 7.2.3 & 7.3.3)
• Load Test Data:   25kN held for 30 secs

• Features:

            – Driveway loading
            – Designed to fit a 450 PPIC chamber
            – Integral lifting keys, tested to withstand 120kgs direct lift
            – Fully galvanised tray
            – Product can be turned to match direction of paving
            – Eliminates the need to cut paving around a circular opening
            – Quick & easy to install
            – Aesthetically pleasing

80mm Deep for Block Paving
